Smart Camera Solution
Smart Camera Solution

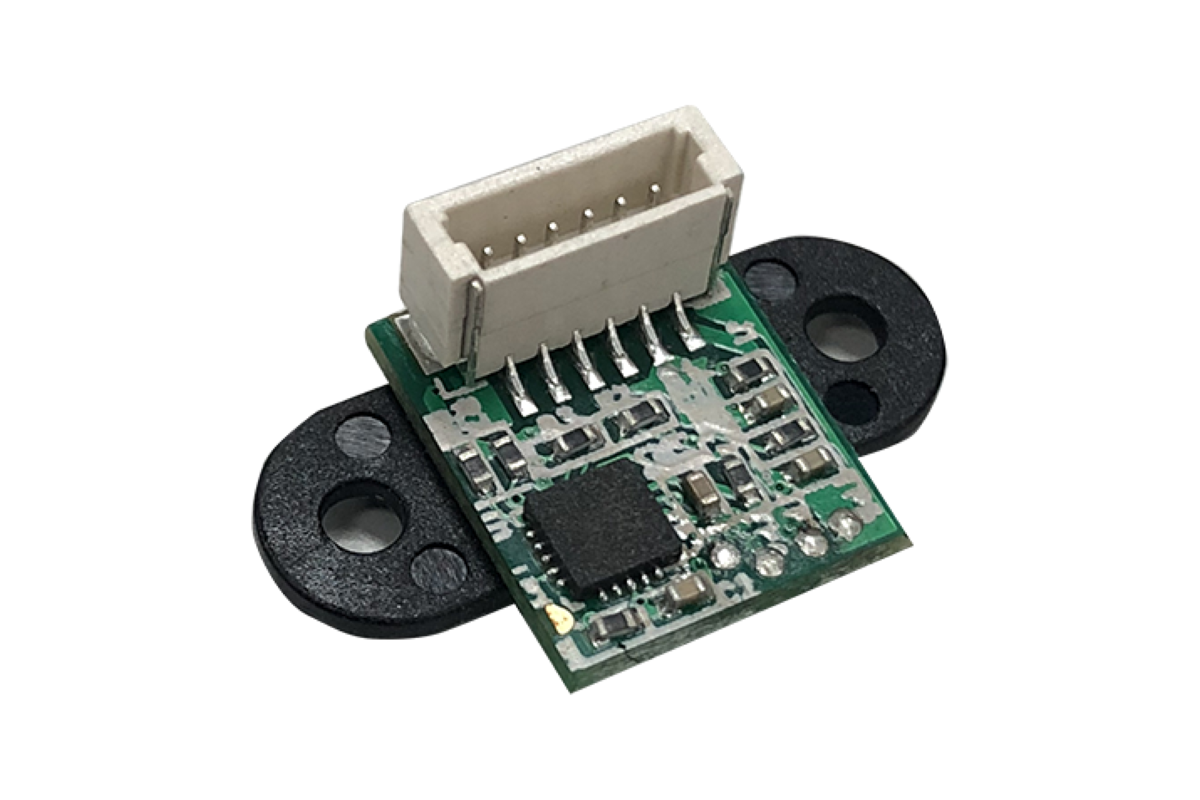

dTOF module
• Ranging distance: 2cm – 40cm (03) ;
10cm – 200cm (02)
• Precision: +5% at 40cm (03 @88% white) ;
+5% at 200cm (02 @88% white)
• Interface: UART, I2C, GPIO
dTOF module
• Ranging distance: 2cm – 40cm (03) ;
10cm – 200cm (02)
• Precision: +5% at 40cm (03 @88% white) ;
+5% at 200cm (02 @88% white)
• Interface: UART, I2C, GPIO

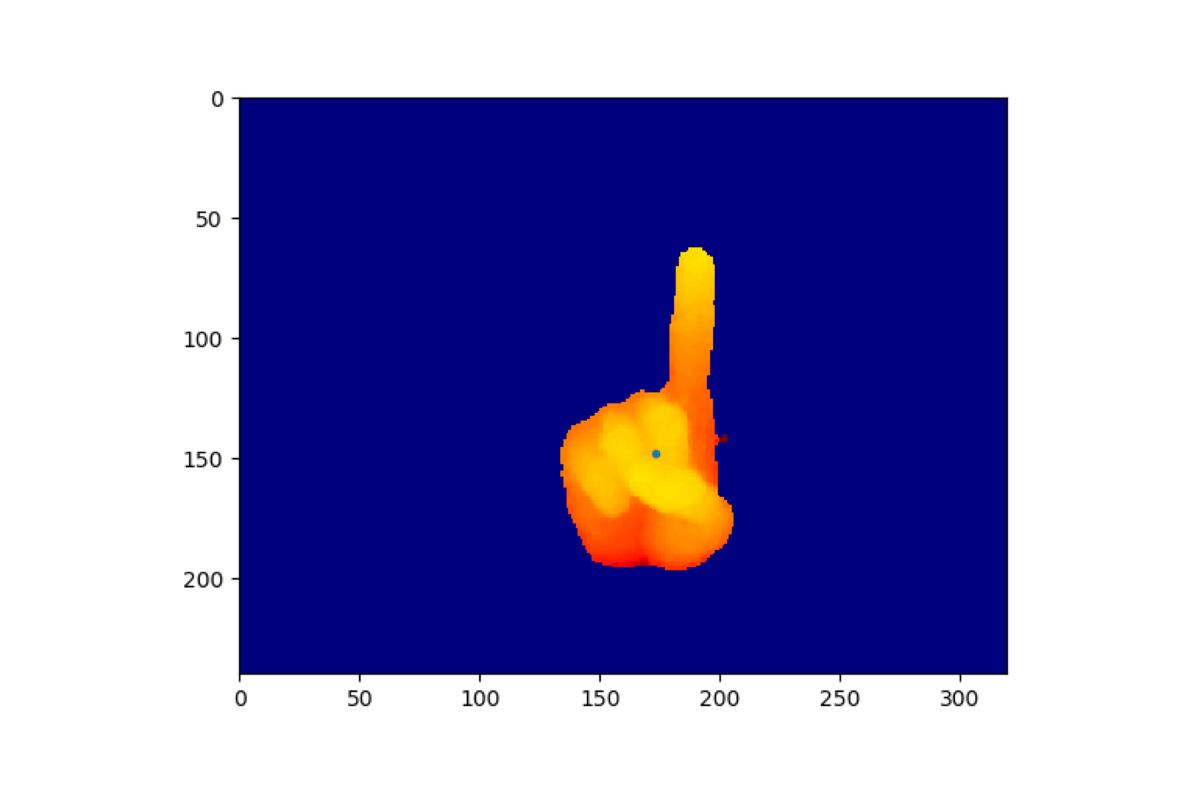

3D TOF camera
• 940nm VCSEL
• IR & depth image output over UVC interface
(point cloud calculation on host)
• QVGA/HQVGA resolution
• Regular/wide FOV, ranging distance over 2 meters
3D TOF camera
• 940nm VCSEL
• IR & depth image output over UVC interface
(point cloud calculation on host)
• QVGA/HQVGA resolution
• Regular/wide FOV, ranging distance over 2 meters
Gesture control module
• 3-axis gesture control using dTOF module with embedded algorithm
• Ranging distance: around 20cm
• Interface: UART, I2C, GPIO
Gesture control module
• 3-axis gesture control using dTOF module with embedded algorithm
• Ranging distance: around 20cm
• Interface: UART, I2C, GPIO

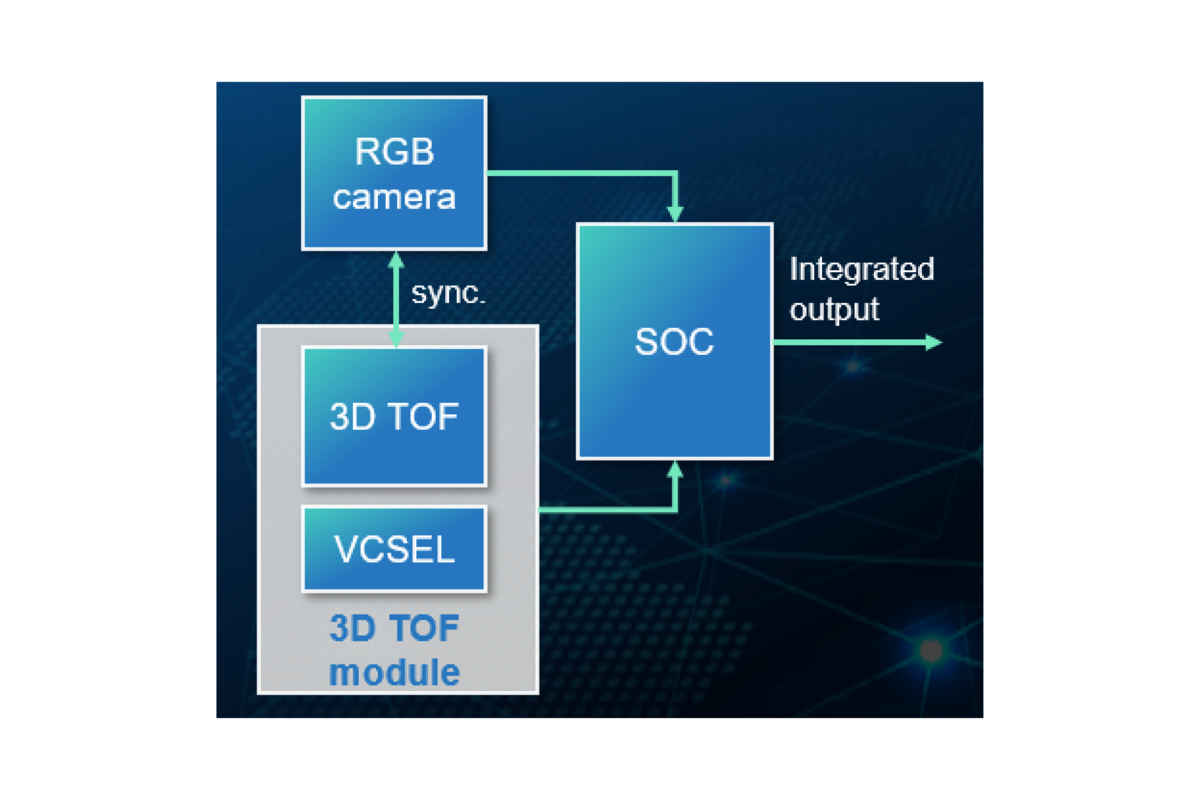

RGB-D camera (RGB+3D TOF)
• Global shutter RGB image matched with TOF image
• Integrated RGB, IR & depth image output over UVC interface (point cloud calculation on host)
• 1920*1200 RGB, HQVGA TOF resolution
• Regular/wide FOV, ranging distance over 2 meters
RGB-D camera (RGB+3D TOF)
• Global shutter RGB image matched with TOF image
• Integrated RGB, IR & depth image output over UVC interface (point cloud calculation on host)
• 1920*1200 RGB, HQVGA TOF resolution
• Regular/wide FOV, ranging distance over 2 meters

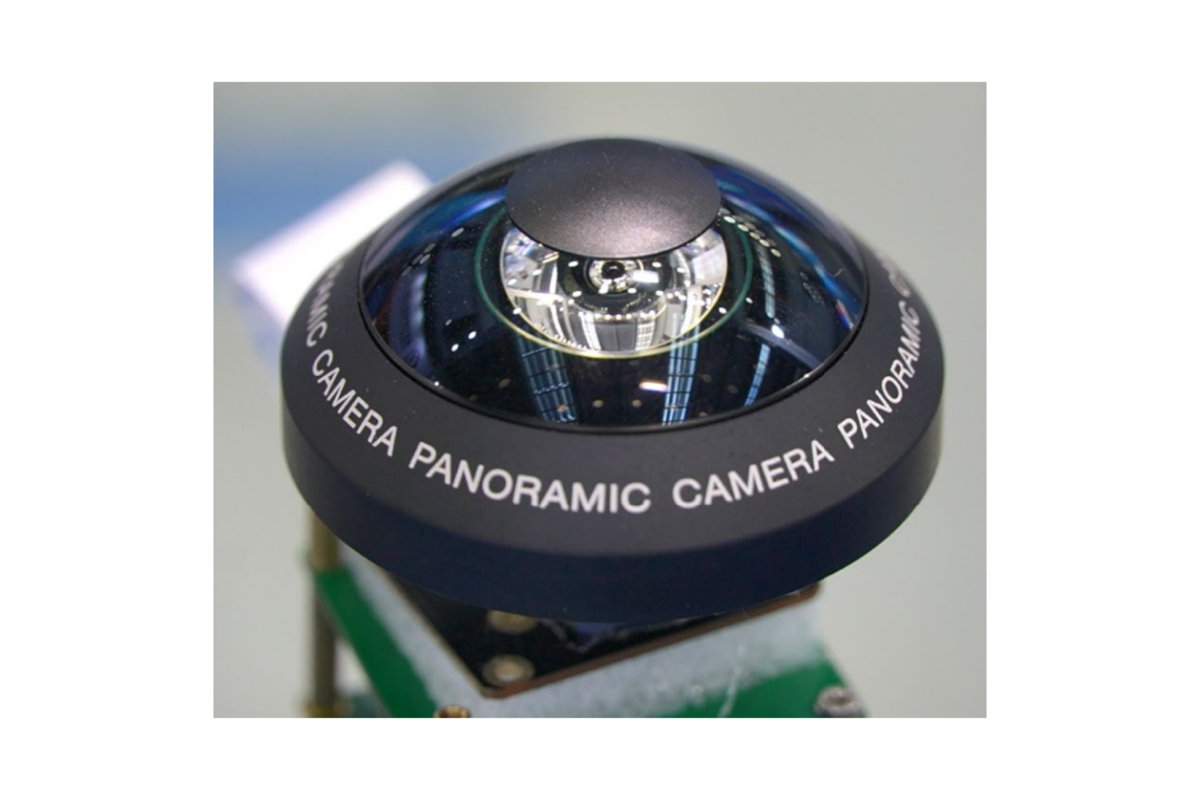

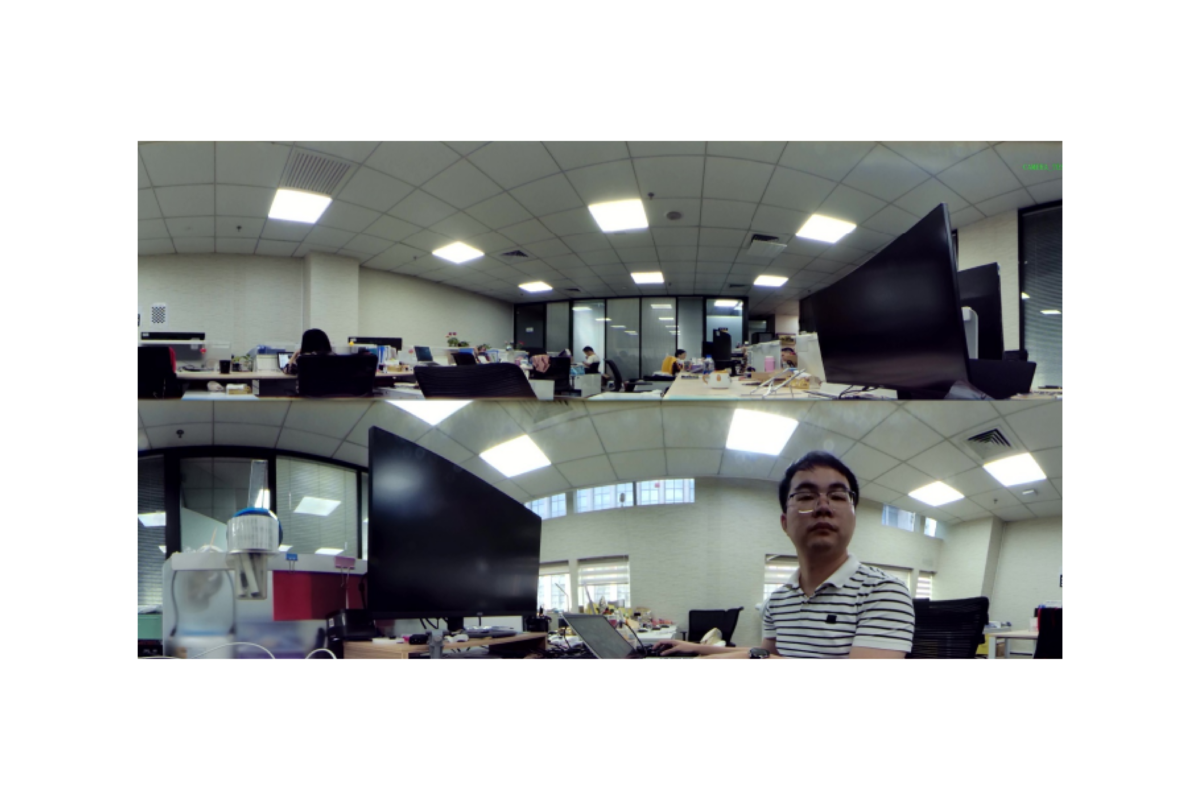

360 AVS module
• Single camera module for around view,
LDC (lens distortion correction) implemented
• 4K@30 fps (3840*2160, split image output) ; 2560*1440@30 fps (split image output) ; 2752*2752@30 fps (full image output)
360 AVS module
• Single camera module for around view,
LDC (lens distortion correction) implemented
• 4K@30 fps (3840*2160, split image output) ; 2560*1440@30 fps (split image output) ; 2752*2752@30 fps (full image output)

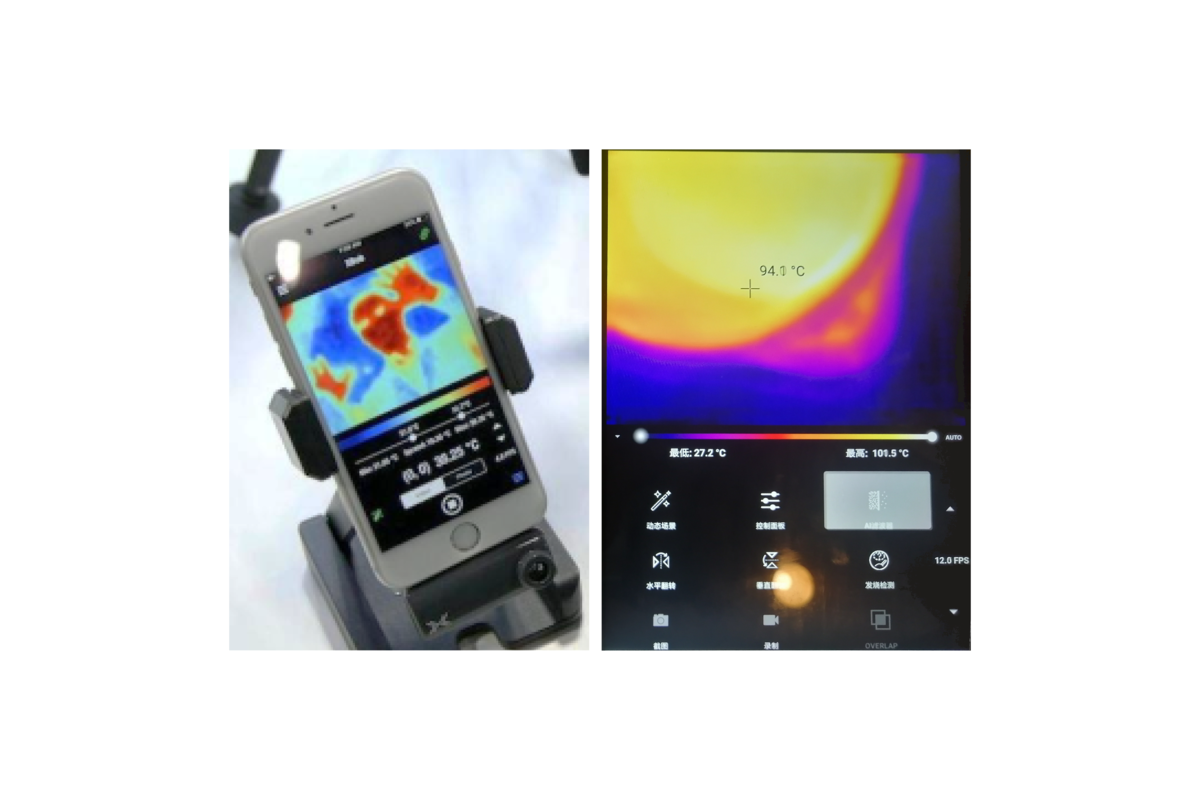

Thermal camera
• 80*62 thermal video resolution
• FOV 44.2°H x 34.5°V
• Ranging distance: 0.7~2 m
• Max. frame rate: 15 fps
Thermal camera
• 80*62 thermal video resolution
• FOV 44.2°H x 34.5°V
• Ranging distance: 0.7~2 m
• Max. frame rate: 15 fps

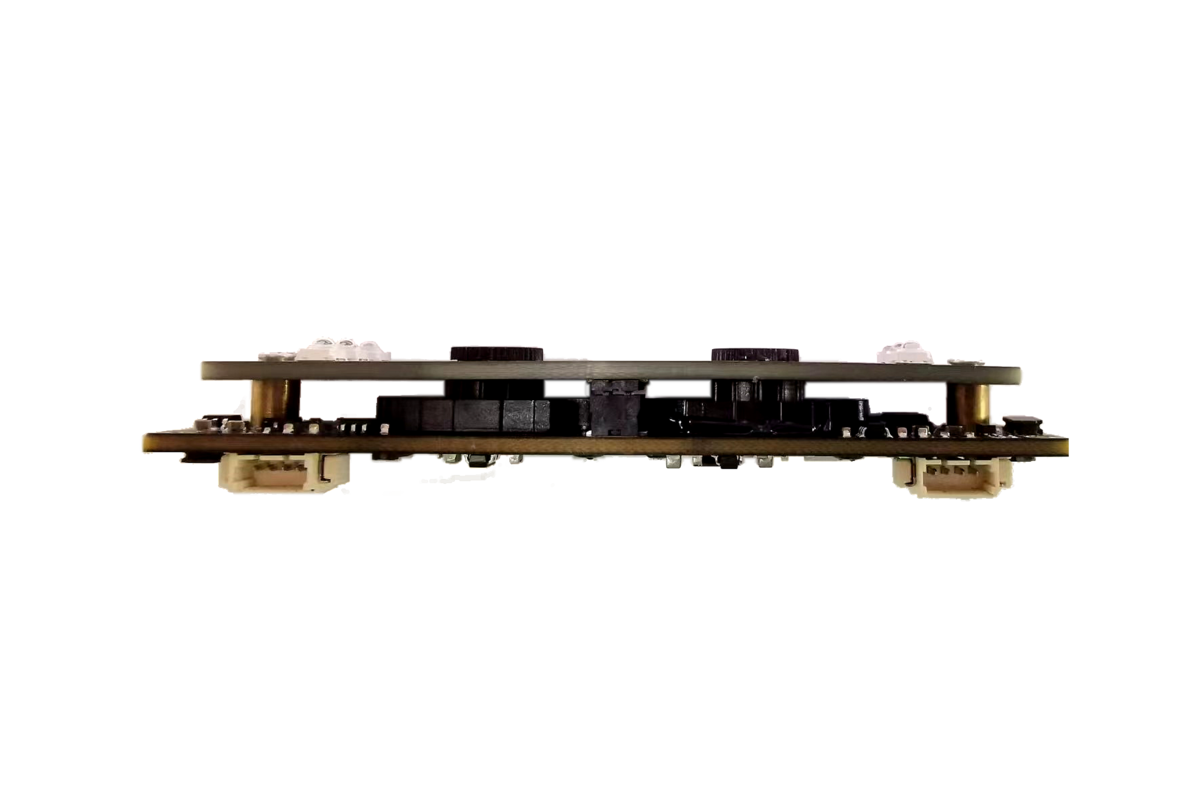

RGB-IR dual cameras
• 2MP RGB-IR industrial binocular camera module
• Focus distance 40cm-1m for IR camera, and 40cm to infinity for RGB camera
• Fixed 30 fps frame rate
• USB2.0 high speed transmission, UVC compliant
RGB-IR dual cameras
• 2MP RGB-IR industrial binocular camera module
• Focus distance 40cm-1m for IR camera, and 40cm to infinity for RGB camera
• Fixed 30 fps frame rate
• USB2.0 high speed transmission, UVC compliant

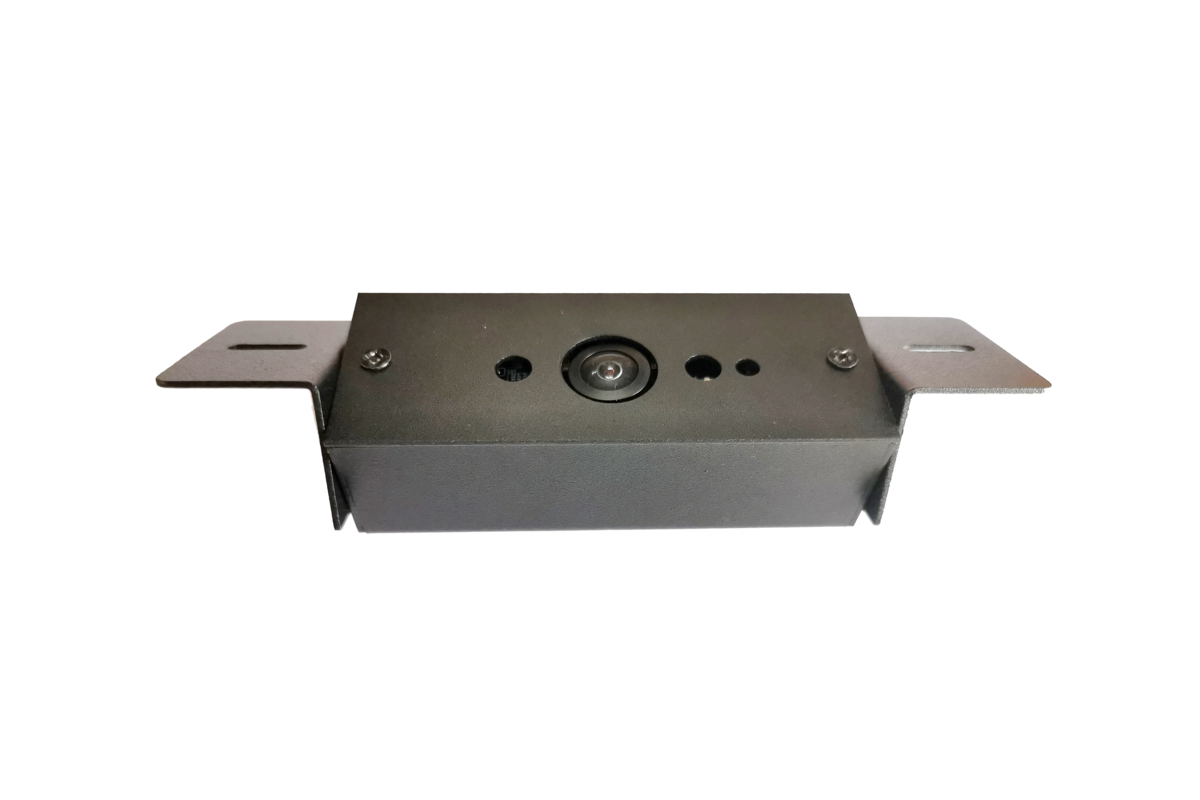

IR 2D barcode reader
• Real-time 2D barcode decoding at high moving speed (2 m/s)
• For both visible light and 940nm IR light
• Frame rate up to 25 fps
• 640*480, 1280*1080 IR camera resolution
• 89° x 66° FOV
IR 2D barcode reader
• Real-time 2D barcode decoding at high moving speed (2 m/s)
• For both visible light and 940nm IR light
• Frame rate up to 25 fps
• 640*480, 1280*1080 IR camera resolution
• 89° x 66° FOV
